TCM-DR800 double rolls shredding machine

TCM-DR series film shredders adopt double film shafts design that rotate at a medium speed, low noise and high efficiency without pusher. Adopt SIENMENS LOGO microcomputer control system with function of start, stop, automatic reverse sensors to protect it

  • Series:TCM-DR
  • Port:Shanghai
  • Mini Order:1 Set
  • Payment:T/T
  • Service:1 year after sale
  • Certisfication:CE SGS TUV
GET PRICE

Product Details

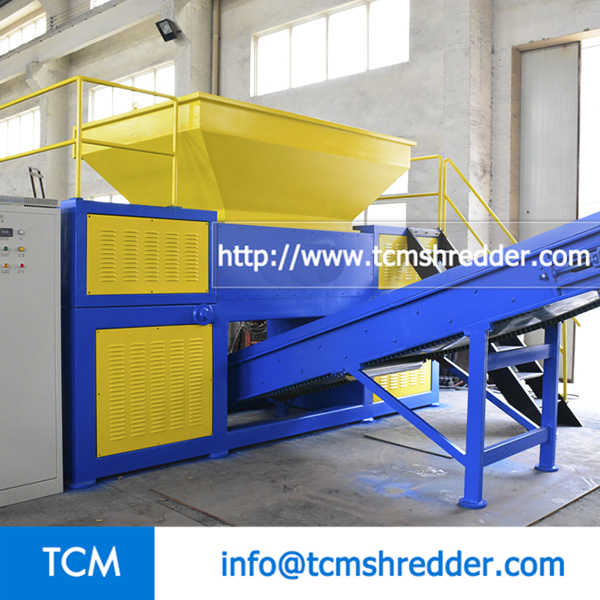

TCM-DR800 double rolls shredding machine is one model of TCM-DR series double rolls shredder in our factory. This model of recycling machine has two rolls and so it need two electric machinery.Gear box with shock absorber. Hardened teeth on the reducer.Absorbs vibration caused by the shredding operation. Make sure the shredding process to be steady.. Connect the rotor and machine gearbox by coupling to make sure running stably and well. And TCM sherdder use better blades which is made by D2 material that much better than Cr12Mov and SKDII.

Product Application

We provide many kinds of baler machine fo our customers, and TCM-DR800 double rolls shredding machine can deal with the following materials, pls feel free to check and contact us!

Product Paramter

Model TCM-DR800
Motor power (kw) 37 37
Voltage (v/hz) 200-660V/3Phrase(Customized)
Rotor-Blade(pcs) 39 39
Counter-Blade(pcs) 8
Blade material Cr12MoV/SKDII
Rotor diameter (mm) 360
Rotor speed(r/min) 45-90
Cutting chamber (mm) 800×850
Machine size(mm) 2940×1500×2200
Weight(kg) 5000
